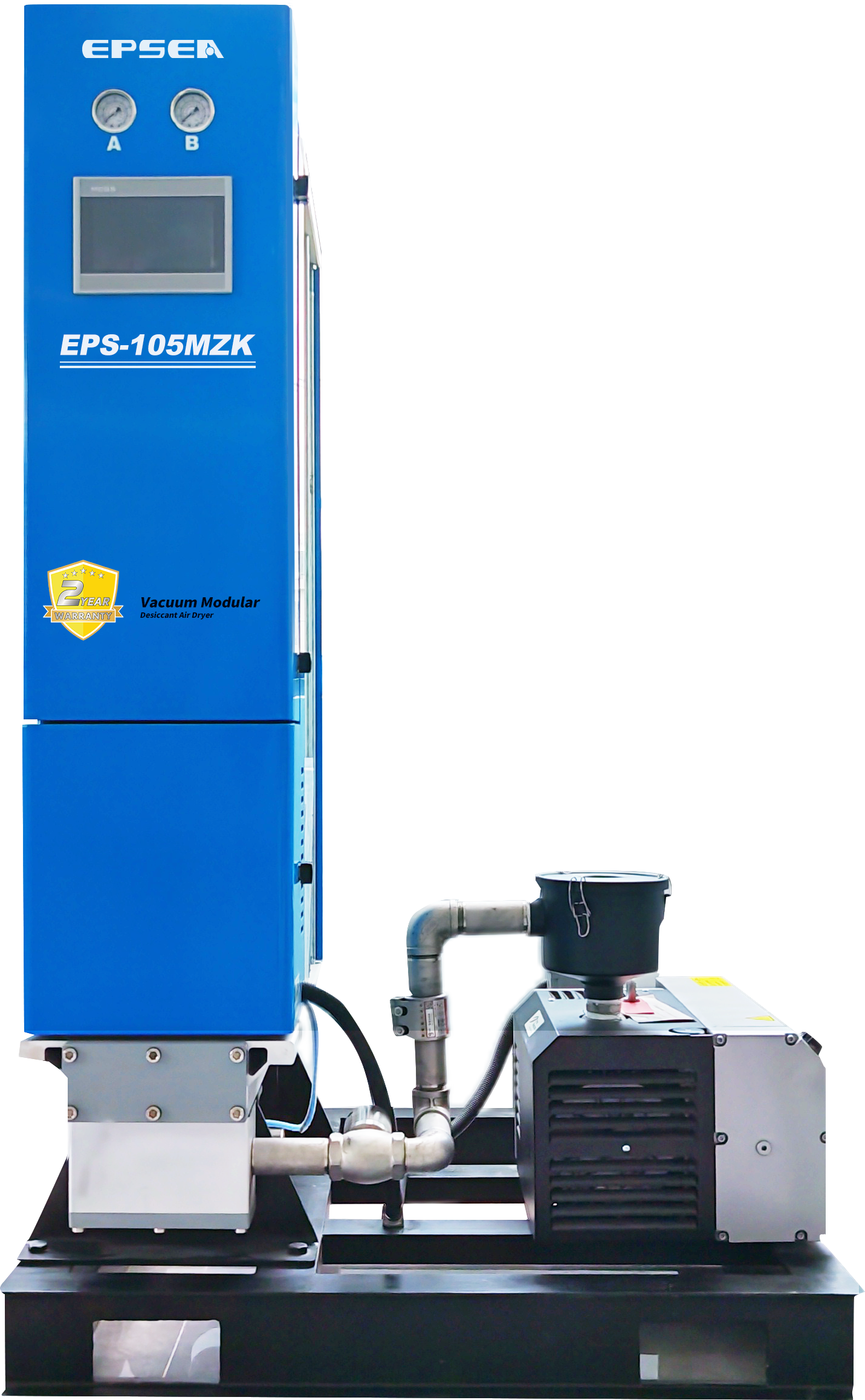

The Vacuum Assisted Modular Desiccant Air Dryer uses a vacuum pump to vacuum the adsorbent bed in the adsorbent cartridge. Because negative pressure can hold more water vapour, the unit uses the smallest possible amount of regeneration gas to take away as much water as possible.
The Vacuum Assisted Modular Desiccant Air Dryer uses a vacuum pump to vacuum the adsorbent bed in the adsorbent cartridge. Because negative pressure can hold more water vapour, the unit uses the smallest possible amount of regeneration gas to take away as much water as possible.
The design is also based on regeneration of the adsorbent in the form of vacuum regeneration under variable pressure, which not only ensures the stability of the dew point, but also greatly reduces the waste of finished gas. The result is a dryer that delivers a better and more stable dew point while consuming far less compressed air than conventional desiccant dryers.
significantly reduces compressed air consumption by about 80%.
better and more stable dew point.
panel displays real-time data, more intuitive and intelligent.
Standard working condition
| Item | Specification |
|---|---|
| Intake temperature | ≤38°C |
| Ambient temperature | ≤38°C |
| Working pressure | 0.7MPa |
Scope of Work
| Item | Specification |
|---|---|
| Max intake temperature | 50°C |
| Max ambient temperature | 45°C |
| Working pressure | 0.4–1.0MPa |
Technical index
| Item | Specification |
|---|---|
| Pressure dew point | -20°C ~ -40°C |
| Pressure loss | ≤0.021MPa |
