Moisture is the failure that shows up somewhere else — a stuck valve, a blistered paint finish, a batch of parts rejected at inspection.

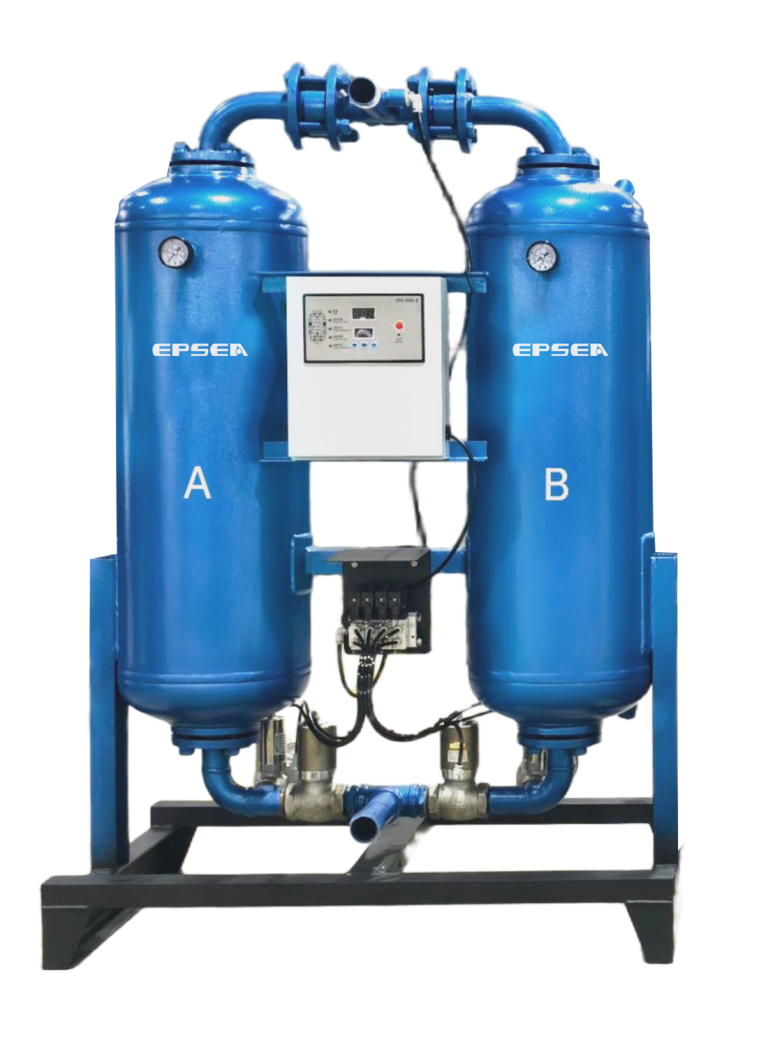

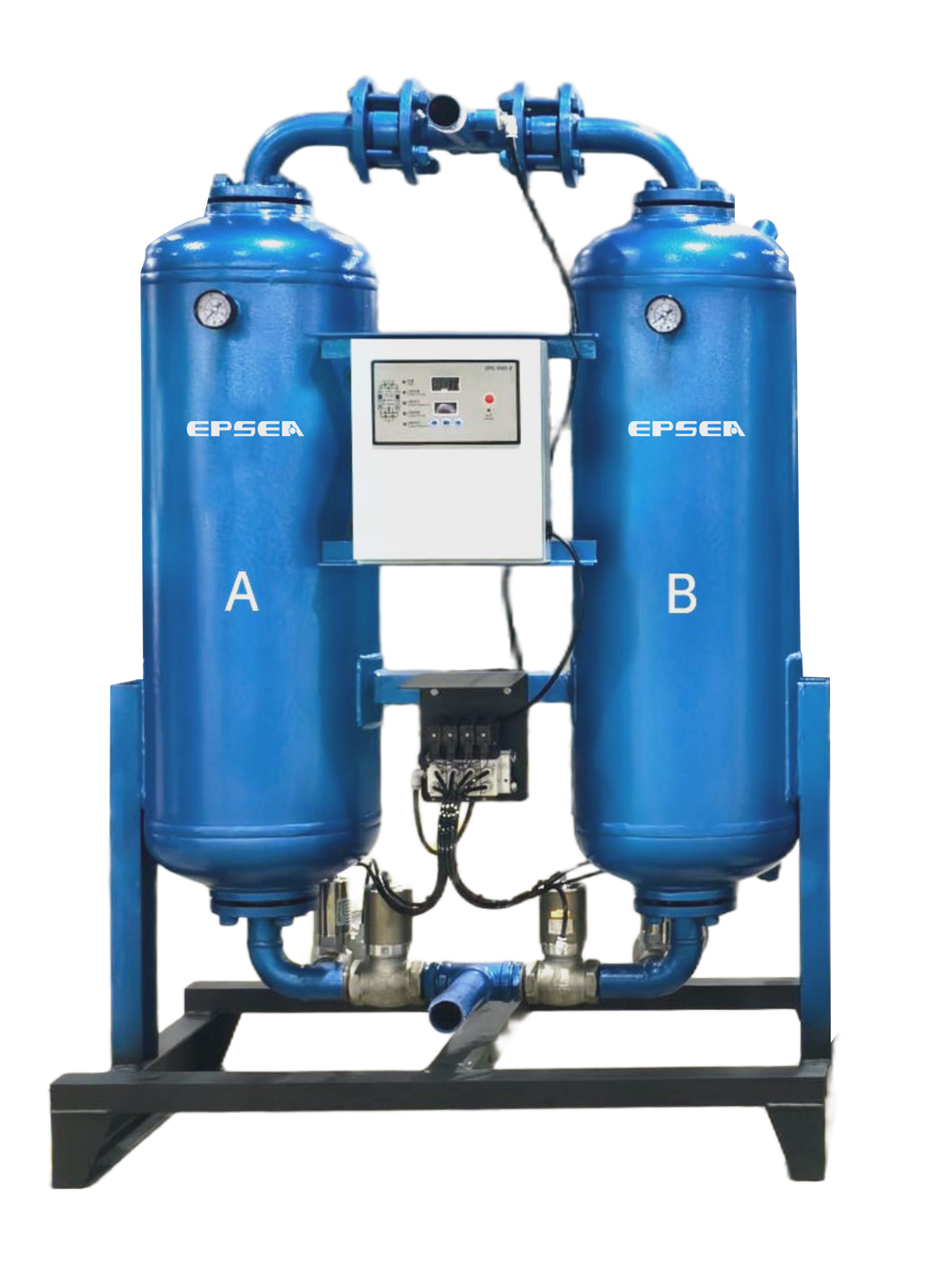

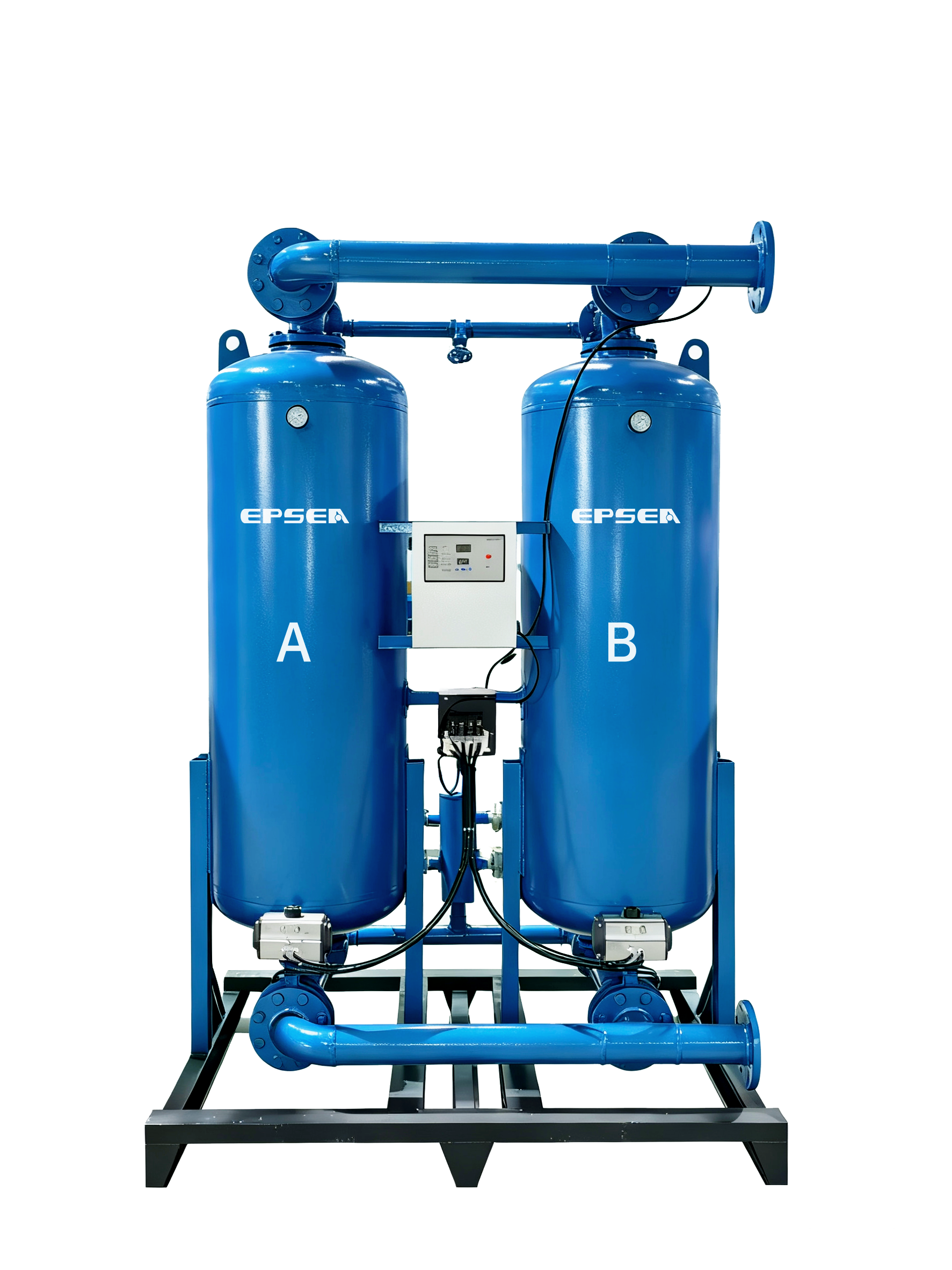

Moisture is the failure that shows up somewhere else — a stuck valve, a blistered paint finish, a batch of parts rejected at inspection. The Heatless Twin Tower Desiccant Air Dryer removes that moisture before it ever reaches the ring main, delivering a pressure dew point as low as -40°C for applications that demand truly dry air.
The dryer is designed, manufactured and tested strictly in accordance with ISO9001, GB150 standard, ISO7183 air dryer standard, and QS pressure vessel inspection specifications, ensuring safe and reliable operation. The reasonable tower structure and control procedures ensure full contact between the compressed air and the desiccant.
The adsorbent adopts international high-purity alumina, with a molecular sieve vacuum negative pressure filling method, so it is not easy to be powdered and has a long service life. The adsorption tank carries a pressure vessel certificate, and the intelligent controller displays running parameters in real time with high precision, better system stability and easy operation.
A high-performance pneumatic control valve provides fast action response, long service life and good stability. The unit is equipped with a standard low-power solenoid valve featuring high precision and fast response. The silencer uses multi-layer fiber material with a uniquely designed mechanical noise reduction structure, resulting in lower noise during operation.
Typical duties for this series across our installed base.
Strictly in accordance with ISO9001, GB150 standard, ISO7183 air dryer standard, QS, pressure vessel inspection specifications for design, manufacturing, production and testing to ensure safe and reliable operation of products.
Reasonable tower structure and control procedures to ensure the contact of compressed air and desiccant.
The adsorbent adopts international high-purity alumina, molecular sieve, vacuum negative pressure filling method, is not easy to be powdered, and has a long service life.
Adopting the adsorption tank with the pressure vessel certificate, the safety performance is guaranteed. The intelligent controller is used to display the running parameters in real time with high precision, better system stability and easy operation.
High-performance pneumatic control valve with fast action response, long service life and good stability; equipped with standard low-power solenoid valve, high precision and fast response.
Silencer, multi-layer fiber material, uniquely designed mechanical noise reduction, lower noise.
Working Conditions
| Item | Specification |
|---|---|
| Inlet Air Temp. (IAT.) | ≤ 38 °C |
| Working Pressure | 0.6 ~ 1.0 MPa |
| Air Consumption | ≤ 13% |
| Inlet Oil Content | ≤ 0.1 ppm |
| Pressure Dew Point | -20 ~ -40 °C |
| Adsorbent | Alumina |
| Control Mode | Microcomputer Automatic Control |
Note: Other standards can be customized.
