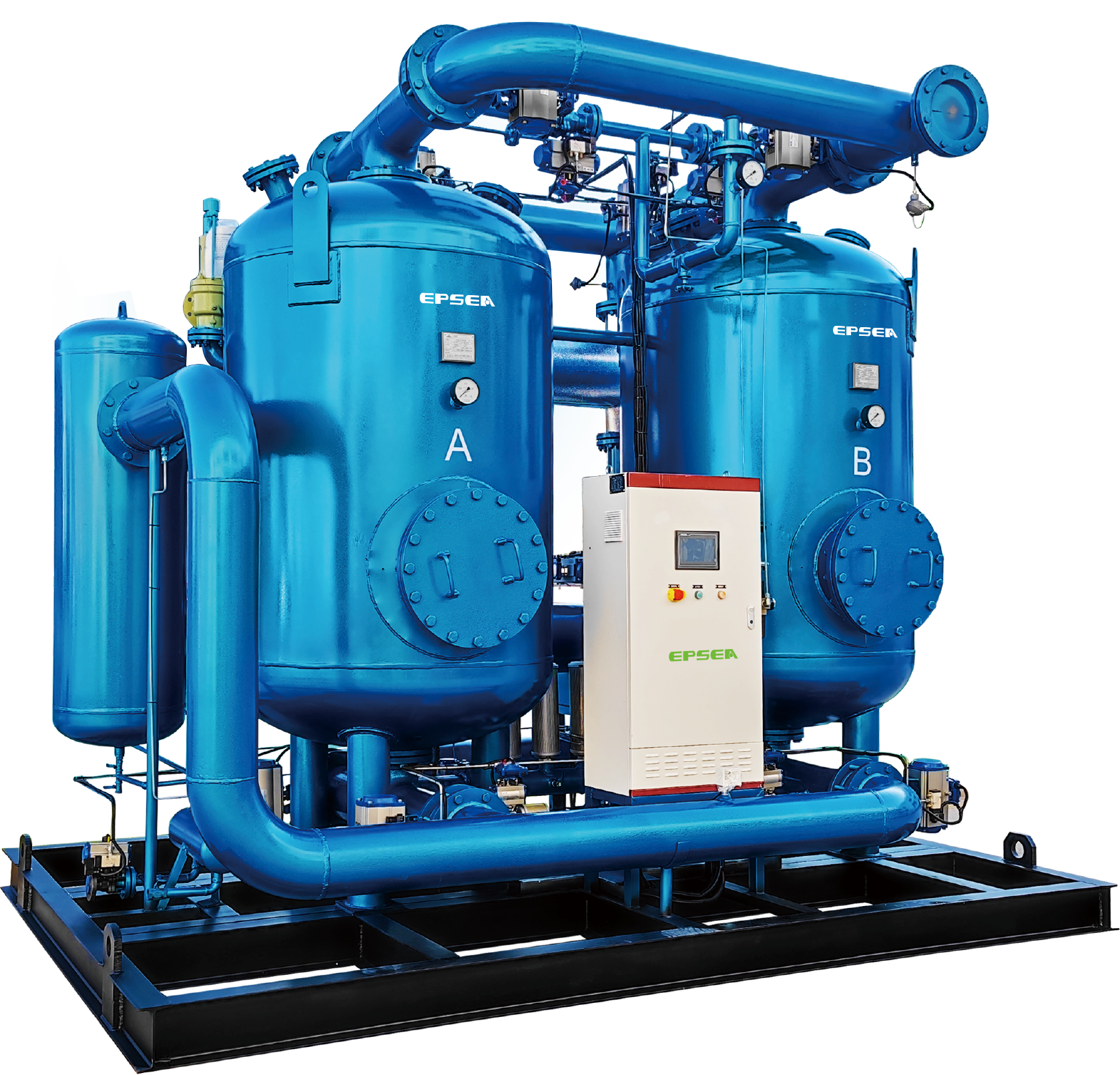

The micro-loss compression heat series is divided into two models according to the exhaust dew point: without heater (EQY, target dew point -20℃) and with heater (EQY-T, target dew point -40℃, customized).
The micro-loss compression heat series is divided into two models according to the exhaust dew point: without heater (EQY, target dew point -20℃) and with heater (EQY-T, target dew point -40℃, customized). The two series are basically the same, except that the with-heater model adds a heater during thermal regeneration so that the adsorbent is desorbed at a higher temperature and regenerated more thoroughly to achieve a lower dew point. In structure, only the heater component is added to the air inlet. Users should select the corresponding series according to actual dew-point requirements.
with a specific surface area of 350 m²/g, this high-efficiency adsorbent developed with upstream suppliers has an excellent adsorption rate to ensure a stable dew point.
vacuum negative-pressure filling ensures tightness and anti-pulverization for longer service life.
equipped with a PLC controller for real-time monitoring and data storage, integrating time, load and dew-point control for high energy efficiency.
supports easy remote control, centralized management, intelligent analysis and prediction to optimize operation.
corrosion-resistant, durable and aesthetically pleasing.
Standard Working Condition
| Item | Specification |
|---|---|
| 8 hours standard cycle | |
| Inlet pressure | 0.6 ~ 1.0 MPa |
| Inlet temperature | ≥ 110 °C |
| Pressure dew point | -20 ~ -40 °C (lower values require customization) |
| Average regeneration gas consumption | 3 ~ 5% |
| Pressure loss | ≤ 0.035 MPa |
需要定制型号？ 联系我们的工程师。

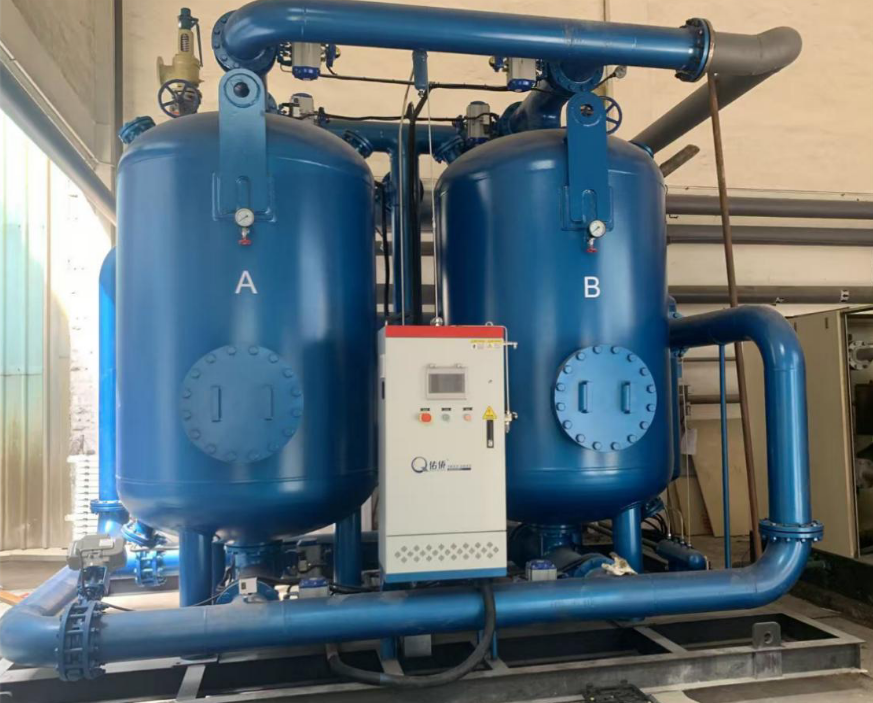

The customer's cold rolling, galvanizing and color coating sheet metal production lines require high dryness for instrument and process compressed air. The existing system had unstable dew point and high operating energy consumption, affecting product surface quality and continuous production.
SolutionWe configured a micro loss compression heat desiccant dryer, using compressor waste heat for regeneration with a stable dew point, meeting the production line air demand. After commissioning, compressed air quality improved, product surface quality and equipment operation stability were enhanced, and operating energy consumption was effectively reduced.
