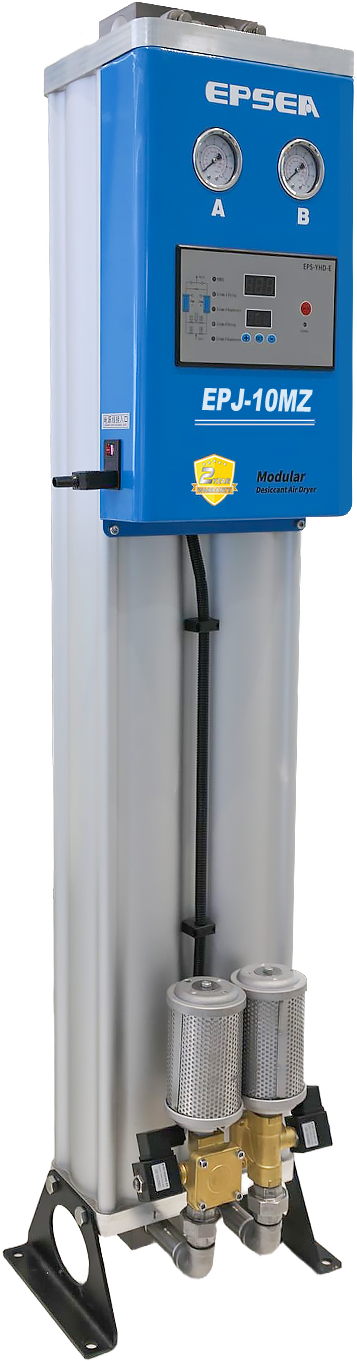

Laser cutting modular adsorption dryer is formed by die-cast aluminum, with two adsorption chambers, each filled with adsorbent to absorb the water in wet compressed air. When one chamber is working (adsorption), the opposite chamber is regenerated by pressure swing adsorption regeneration.
Laser cutting modular adsorption dryer is formed by die-cast aluminum, with two adsorption chambers, each filled with adsorbent to absorb the water in wet compressed air. When one chamber is working (adsorption), the opposite chamber is regenerated by pressure swing adsorption regeneration. During regeneration, a part of the dry compressed air is released from the working pressure to atmospheric pressure, and the water absorbed is taken away by the adsorbent saturated with water, so the adsorbent is regenerated. Designed for the laser cutting industry, the unit uses special adsorbent and a high-strength aluminum alloy structure, is free of annual pressure vessel inspection, and offers stable performance with small volume and easy maintenance.
Uses special adsorbent (hardness 2 times that of ordinary adsorbent), not easy to break or powder.
Special high-strength aluminum alloy extrusion molding, no suture line, high pressure strength.
Modular design does not belong to the pressure vessel, free of annual inspection.
Aluminum alloy cavity is not easy to rust or corrode, with long service life.
Small volume, convenient installation and maintenance.
Standard Working Condition
| Item | Specification |
|---|---|
| Inlet temperature | ≤38°C |
| Ambient temperature | ≤38°C |
| Working pressure | 1.6MPa |
Scope of Work
| Item | Specification |
|---|---|
| Maximum inlet temperature | 45°C |
| Maximum ambient temperature | 45°C |
| Working pressure | 1.0~1.6MPa |
Technical Index
| Item | Specification |
|---|---|
| Pressure dew point | -20~-40°C |
| Pressure loss | ≤3% |
需要定制型号？ 联系我们的工程师。

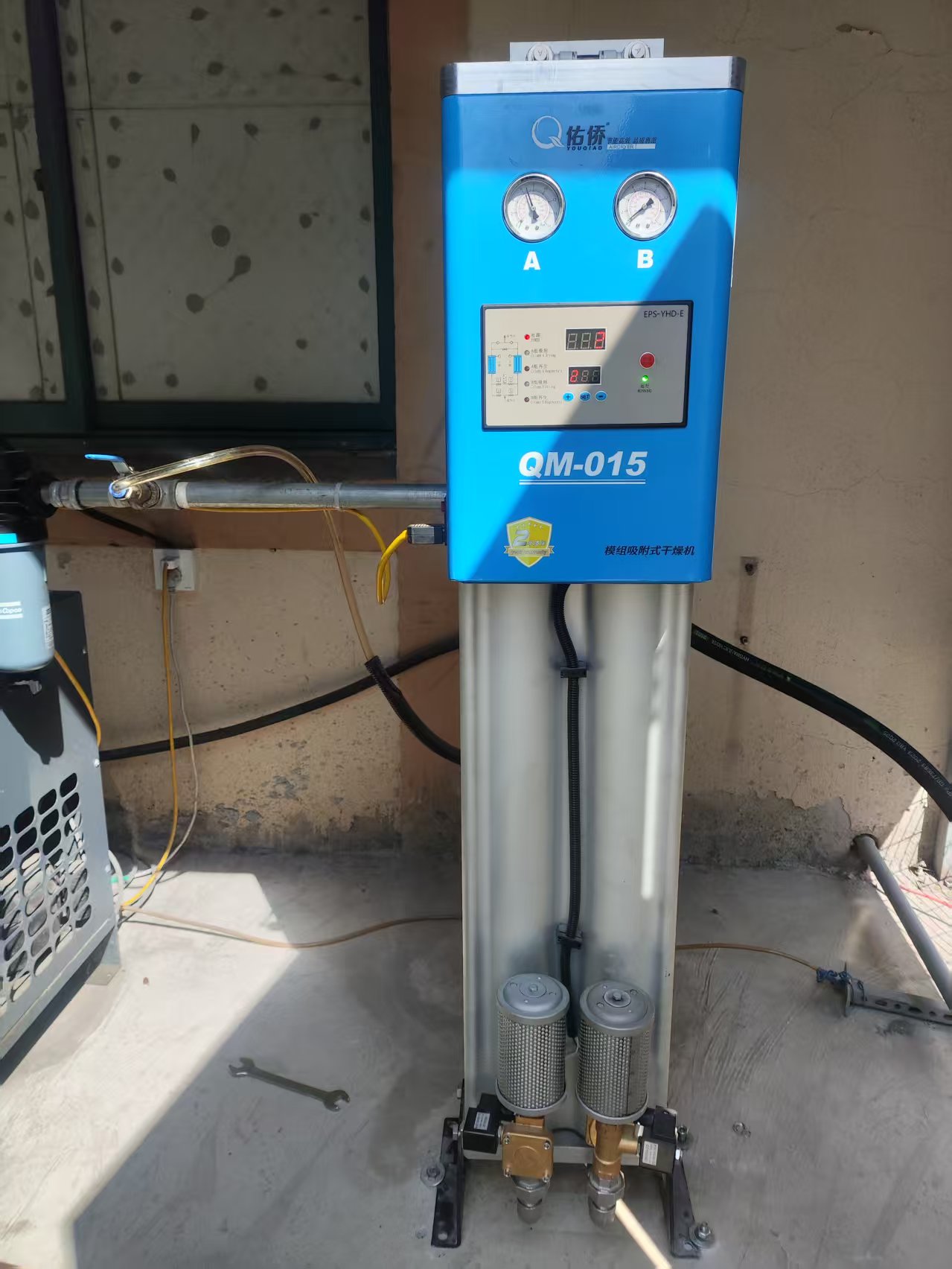

The existing dryer had unstable dew point, and moisture in the compressed air affected laser cutting quality. The electronics industry requires a high level of air dryness, which the existing equipment could not meet.
SolutionWe configured a laser cutting heatless regeneration modular desiccant dryer with a stable dew point, meeting the production air demand. After commissioning, compressed air quality improved, and the air supply is stable and reliable.
