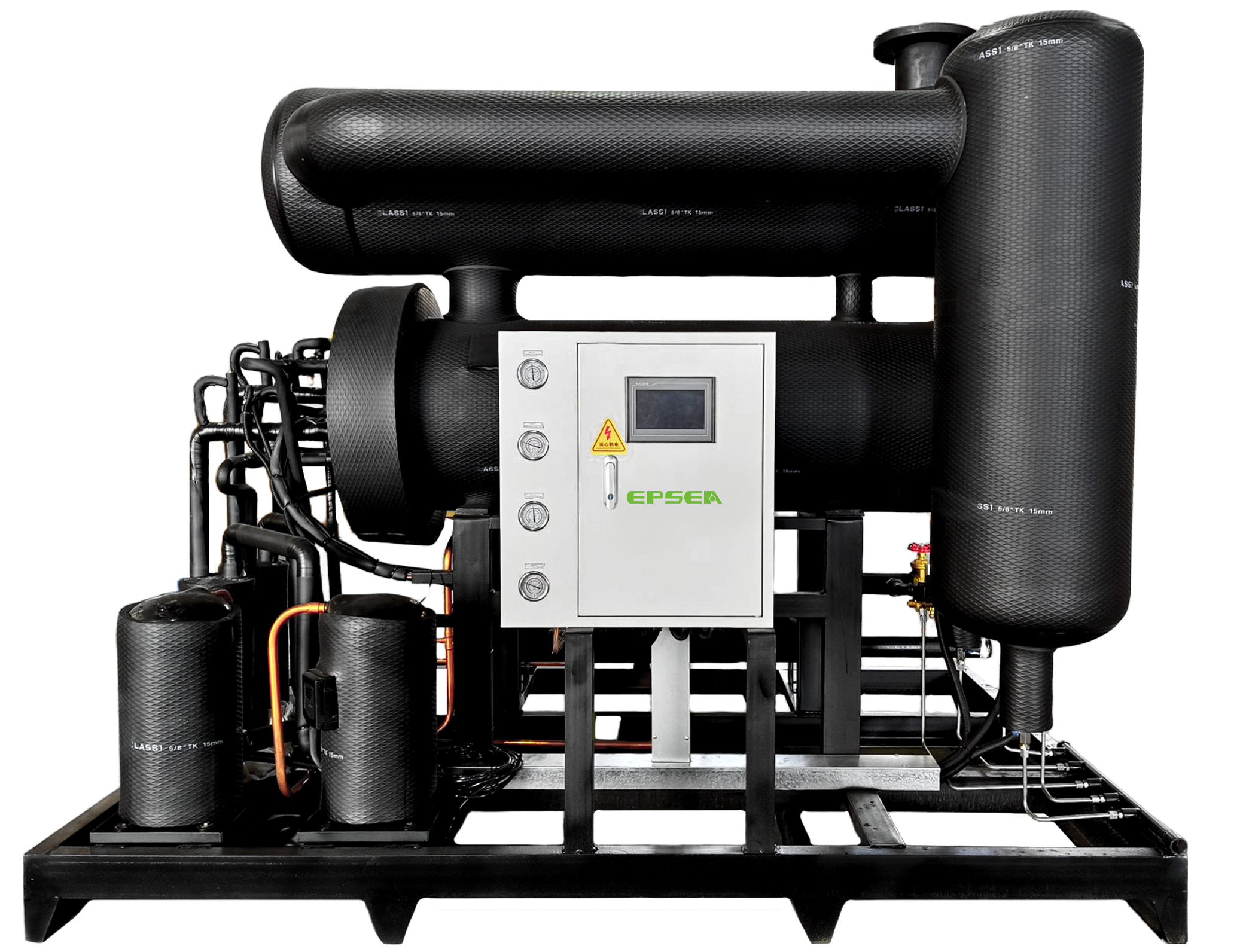

The Water Cooled High Temperature Refrigerated Dryer is designed, manufactured and tested strictly in accordance with ISO9001, GB150, ISO7183 cold dryer standards and QS pressure vessel inspection specifications, ensuring safe and reliable operation.
The Water Cooled High Temperature Refrigerated Dryer is designed, manufactured and tested strictly in accordance with ISO9001, GB150, ISO7183 cold dryer standards and QS pressure vessel inspection specifications, ensuring safe and reliable operation. Its water-cooled condenser uses high-efficiency heat-exchange copper tubes — small in volume, highly efficient and easy to install — making it suitable for airtight operation under high ambient temperatures.
Strictly in accordance with ISO9001, GB150, ISO7183 cold dryer standard and QS pressure vessel inspection specifications for design, manufacturing, production and testing.
Copper tube design with small volume and high efficiency, suitable for airtight operation under high ambient temperature.
Refrigeration and control components all use international quality brands for long service life.
New fully-enclosed refrigeration compressor with long life, low noise, reliable performance and high energy efficiency.
Reasonable equipment structure design.
With excellent automatic drain valve continuously and steadily discharges condensed water.
No blockage, with a filter net that can be cleaned regularly.
Low temperature, no ice, good refrigerant filtration, effectively removes compressed air moisture.
Working Conditions
| Item | Specification |
|---|---|
| Inlet Air Temp. (IAT.) | 10 ~ 60 °C |
| Cooling | Water Cooled |
| Pressure Dew Point | 2 ~ 10 °C |
| Working Pressure | 0.6 ~ 1.0 MPa |
| Inlet Water Pressure | 0.2 ~ 0.4 MPa |
| Inlet Water Temp. | 2 ~ 32 °C |
| Cooling Water | Industrial Cycling Water |
Note: Other standards are available.
需要定制型号？ 联系我们的工程师。

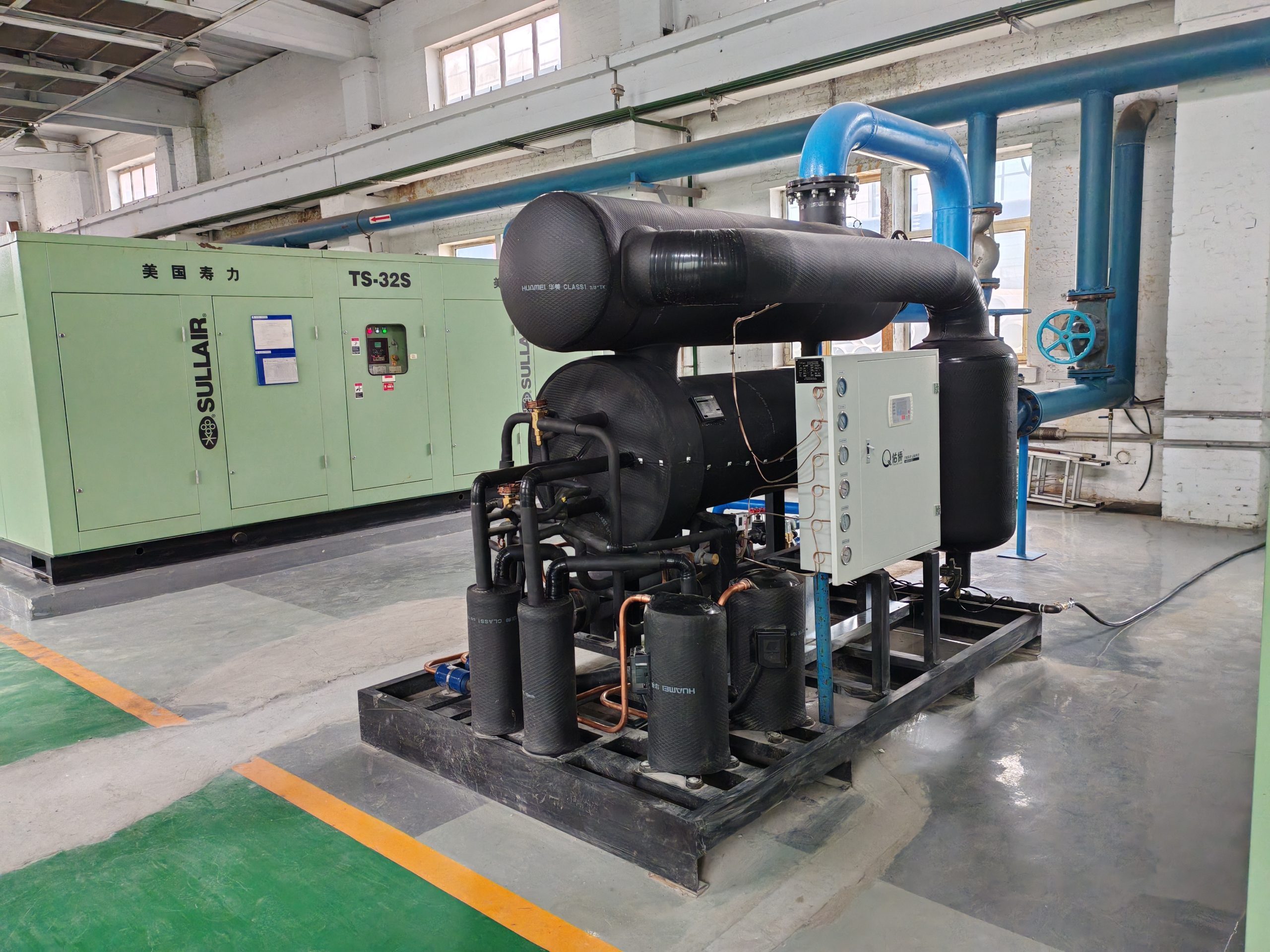

The customer's compressed air system suffered unstable dew point in hot seasons, and excessive moisture affected production equipment operation and product quality. The existing drying equipment had insufficient capacity, and the high ambient temperature limited the cooling effect of air-cooled equipment, making stable air supply difficult.
SolutionWe configured a water-cooled refrigerated air dryer. Water cooling is less affected by ambient temperature and is suitable for high-temperature site conditions. After commissioning, the pressure dew point remains stable, effectively removing moisture from compressed air, ensuring stable operation of production equipment and reducing maintenance frequency.
