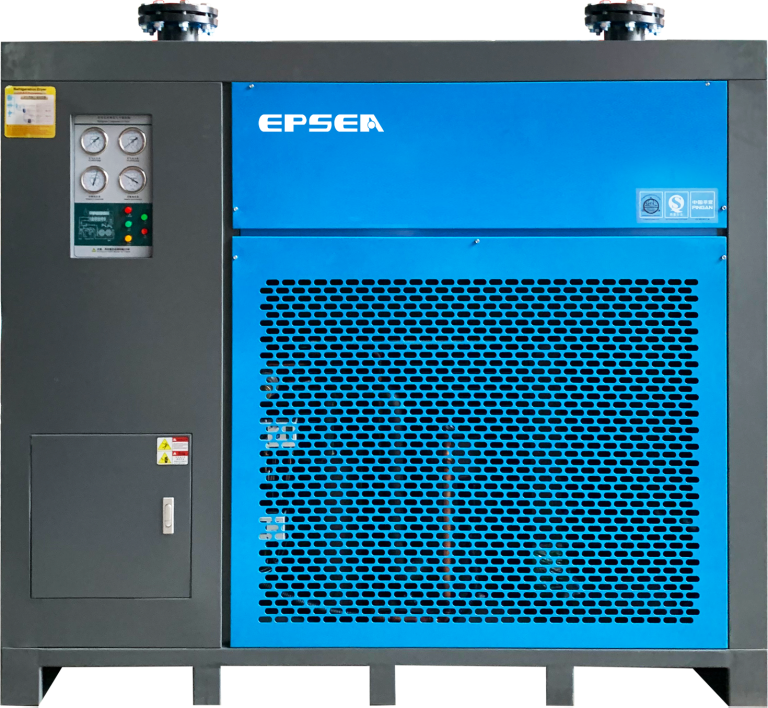

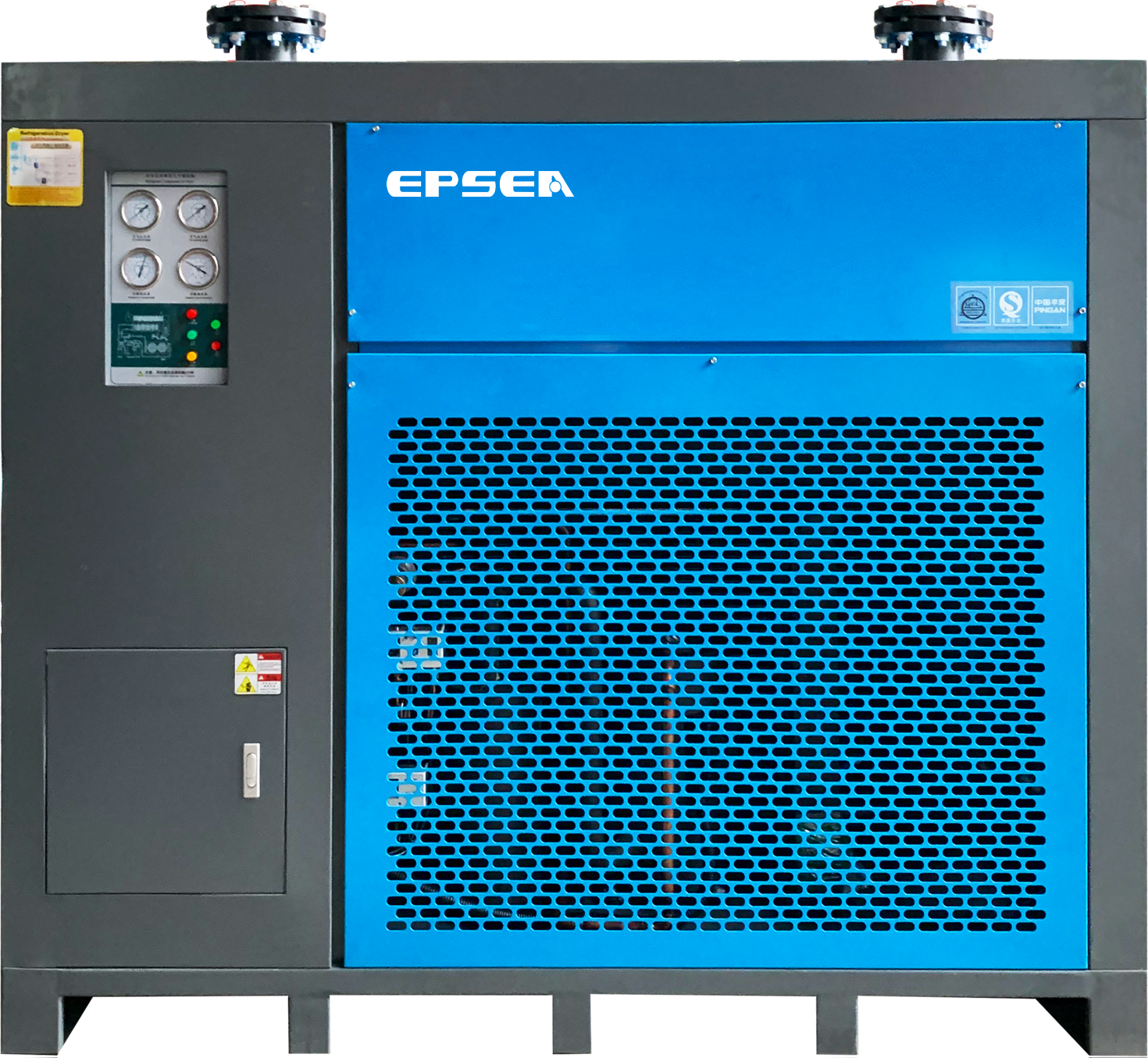

Moisture is the failure that shows up somewhere else — a stuck valve, a blistered paint finish, a batch of parts rejected at inspection. The Air Cooled High Temperature Refrigerated Dryer sits directly after the compressor and after-cooler and removes that moisture before it ever reaches the ring main.
Moisture is the failure that shows up somewhere else — a stuck valve, a blistered paint finish, a batch of parts rejected at inspection. The Air Cooled High Temperature Refrigerated Dryer sits directly after the compressor and after-cooler and removes that moisture before it ever reaches the ring main.
This series is designed specifically for high inlet temperature applications, accepting compressed air up to 60°C at the dryer inlet. The unit is designed, manufactured and tested strictly in accordance with ISO9001, GB150 and ISO7183 refrigerated dryer standards, along with the QS pressure vessel inspection standard, ensuring safe and reliable products.
The heat exchanger and the air-cooled condenser are independently produced and adopt hydrophilic aluminum foil for high heat exchange efficiency. Refrigeration and control components adopt international quality brands for long service life, and the reasonable equipment structure design allows installation without foundation work, at any reasonable ambient temperature. The outer-rotor fan provides a large air volume and long service life.
A high-efficiency gas-water separator works with an excellent automatic drain valve to continuously and steadily discharge condensed water out of the machine. The cooling system is equipped with an automatic pressure switch that controls fan power for maximum power saving, saving over 30%. The drainage system design prevents blockage, and the filter net can be cleaned regularly.
The unique refrigeration system design keeps operating temperature low without ice, with good refrigerant filtration, effectively removing compressed air moisture.
Every unit is pressure-tested and run for a full thermal cycle before it leaves the factory. Units are shipped ready to pipe in — no field charging, no commissioning specialist required.
Typical duties for this series across our installed base.
Strictly in accordance with ISO9001, GB150, ISO7183 refrigerated dryer standard and QS pressure vessel inspection standard for design, manufacturing and testing, ensuring safe and reliable products.
Heat exchanger and air-cooled condenser are independently produced, adopting hydrophilic aluminum foil for high heat exchange efficiency.
Can be installed at any reasonable ambient temperature.
Large air volume and long service life.
Refrigeration and control components adopt international quality brands for long service life.
Reasonable equipment structure design.
With excellent automatic drain valve continuously and steadily discharges condensed water.
Cooling system with automatic pressure switch controls fan power for maximum power saving, saving over 30%.
No blockage, with a filter net that can be cleaned regularly.
Low temperature, no ice, good refrigerant filtration, effectively removes compressed air moisture.

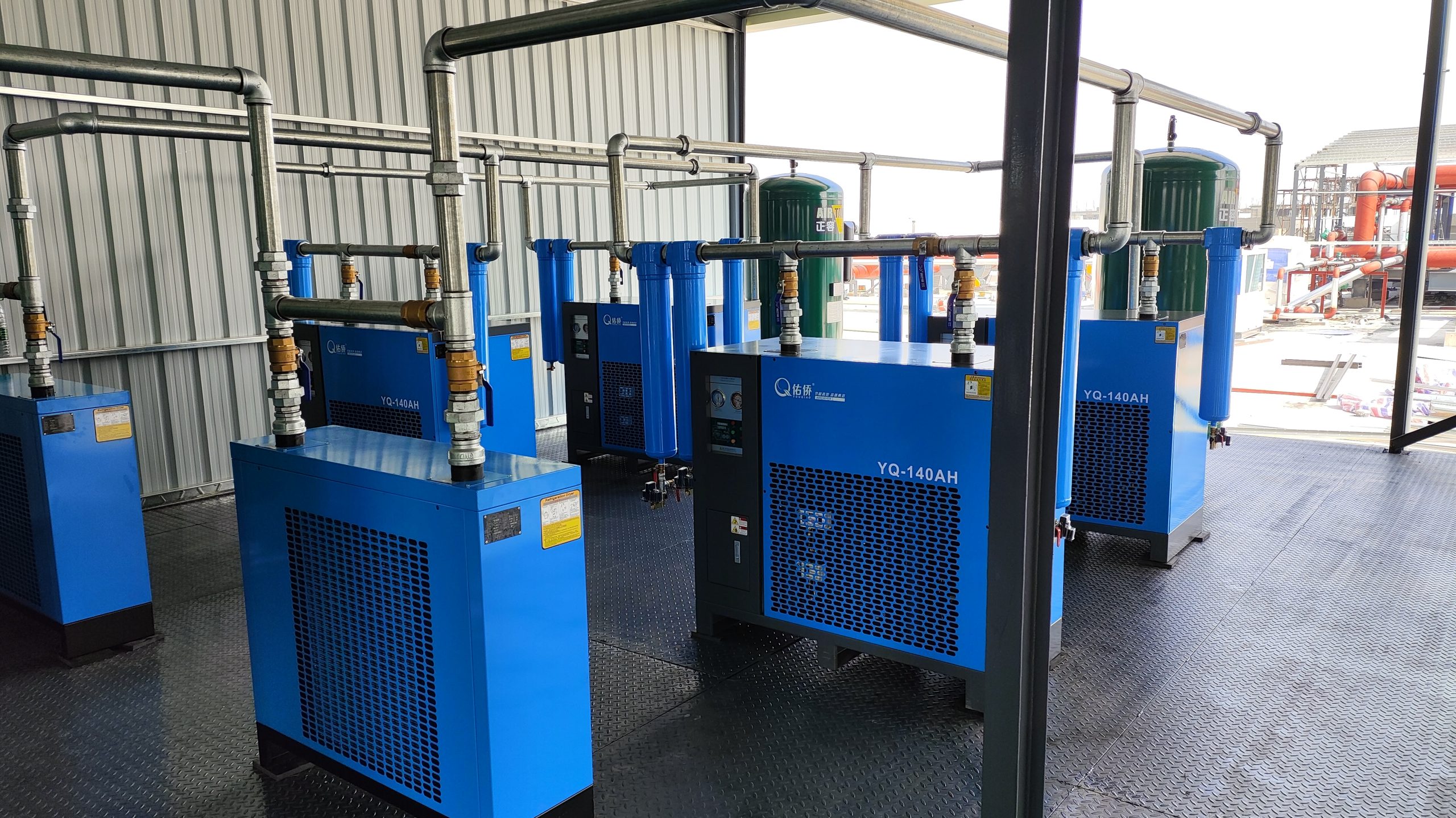

The customer's compressed air system contained moisture, affecting production equipment operation and product quality. The automotive industry requires a high level of air dryness, which the existing equipment could not meet.
SolutionWe configured an air-cooled refrigerated air dryer with a stable dew point, meeting the production air demand. After commissioning, compressed air quality improved, and the air supply is stable and reliable.
