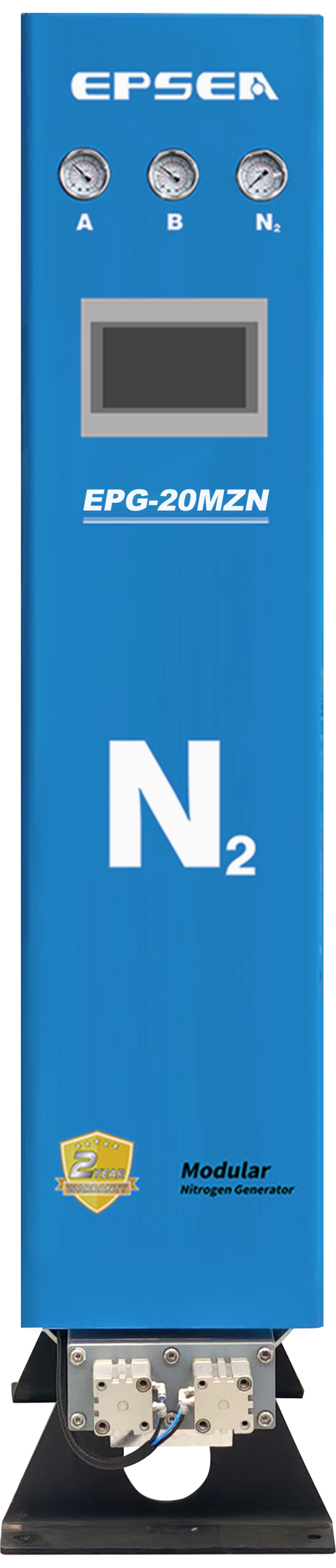

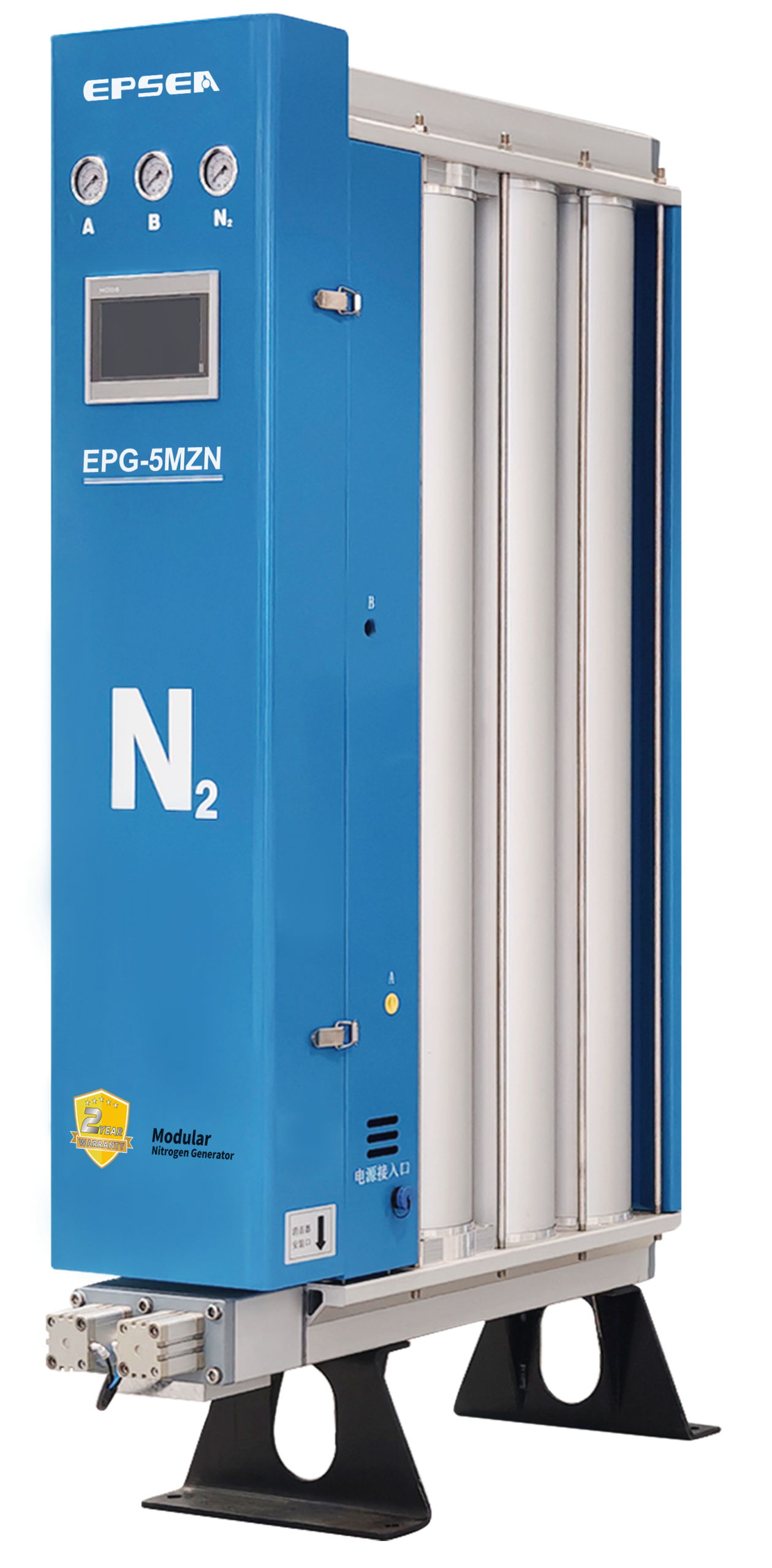

EPSEA Modular Nitrogen Generator uses multiple high-strength aluminum alloy cavities filled with high-performance molecular sieve to separate nitrogen and oxygen from compressed air by pressure swing adsorption (PSA). It delivers nitrogen of 95~99.999% purity at a flow of 2~280Nm³/h, with a low air-to-nitrogen ratio of 4.2:1 at 99.99% purity — about 15% more energy-efficient than traditional twin-tower generators. PLC programmable control with HMI real-time monitoring enables automatic evacuation of unqualified nitrogen and energy-saving automatic pause, while the non-corrosive aluminum alloy structure ensures a long service life.
at 99.99% purity the air-to-nitrogen ratio is 4.2:1 versus 5:1 for traditional twin-tower units, saving about 15% energy consumption.
monitors air/nitrogen pressure, purity and flow in real time; automatically purges off-spec nitrogen and supports energy-saving pause.
adapts to load fluctuations and adjusts switching cycles, reducing air consumption by 15-50% versus rated values under specific conditions.
corrosion- and rust-proof, avoiding failure from internal pipe corrosion; some models with a built-in nitrogen tank save installation space.
runs continuously to avoid downtime from cylinder changeover; when capacity grows, simply add modules without replacing the whole machine.
| Item | Specification |
|---|---|
| Nitrogen Flow | 2-280 Nm³/h |
| Inlet Temp. | ≤ 35 °C |
| Inlet Pressure | 0.6-1.0 MPa |
| Nitrogen Purity | 95-99.999% |
| Noise | ≤ 80 dB |
| PDP | -40 °C ~ -70 °C |
| Power Supply | AC220V / AC110V DC24V 50/60Hz |
| Nitrogen Outlet Pressure | 0.1-0.8 MPa (Adjustable, with built-in nitrogen tank) |
| Max Ambient Temp. | ≤ 45 °C |
| Control Method | PLC programmable control / HMI microcomputer control |
Note: Other special standards can be customized. For more details, please contact us.
需要定制型号？ 联系我们的工程师。

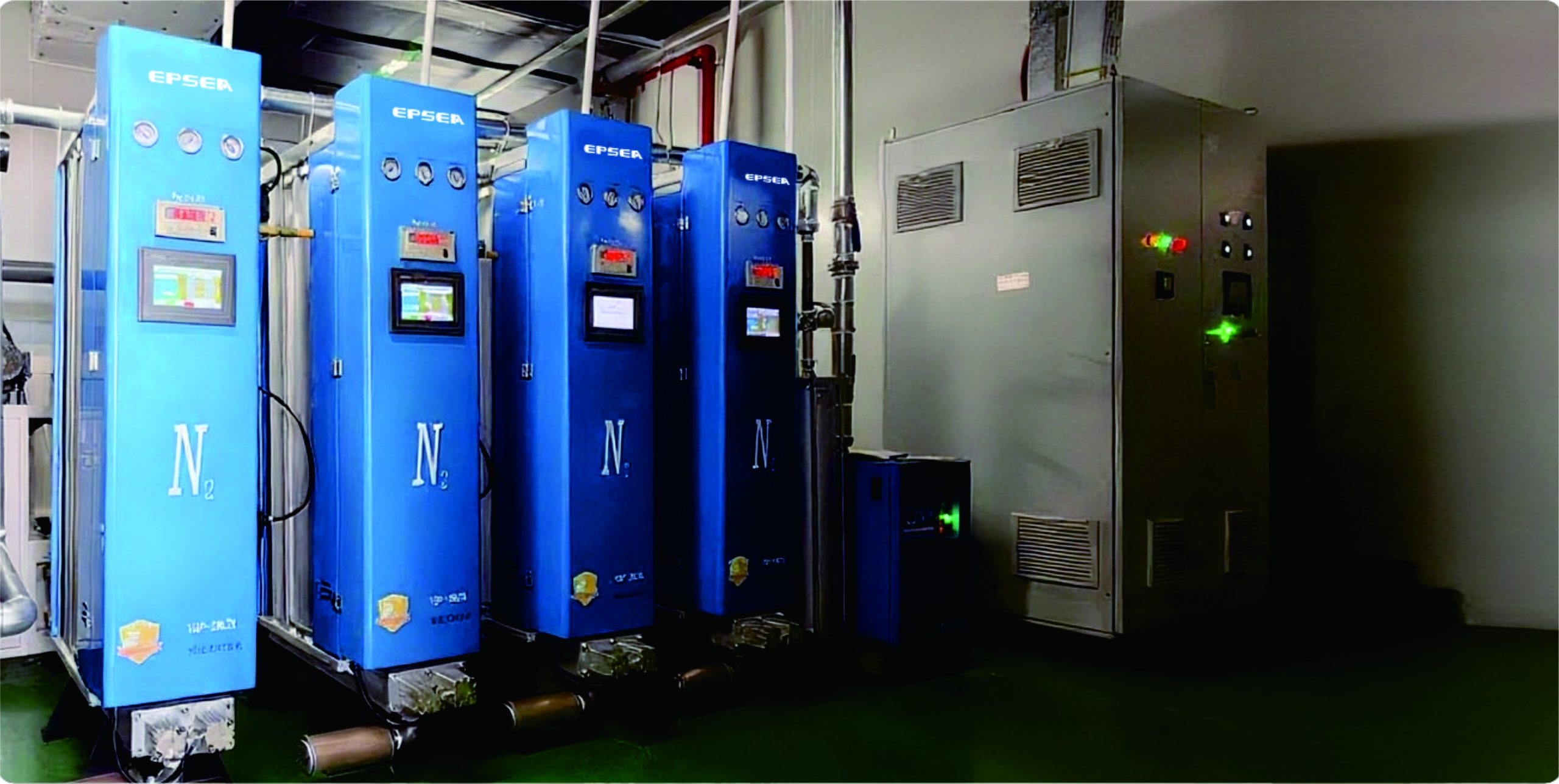

The customer previously relied on purchased nitrogen, which was costly and subject to supply stability. Automotive manufacturing requires strict nitrogen purity and continuous supply; insufficient purity or interruption would affect production quality and line efficiency. Meanwhile, moisture in compressed air would shorten the service life of the nitrogen generator's molecular sieve.
SolutionWe configured a combined solution of a modular nitrogen generator and a refrigerated air dryer. The dryer removes moisture from compressed air upstream, protecting the molecular sieve and extending equipment life. After commissioning, nitrogen purity remains stable and supply is continuous and reliable, meeting the high-purity nitrogen demand for automotive manufacturing while reducing nitrogen cost.
