Line Filter 过滤器与分离器

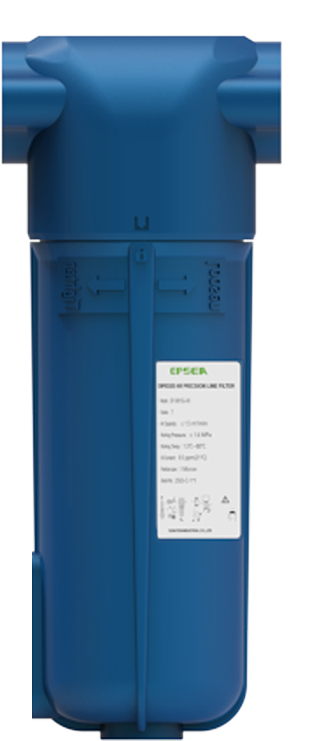

The compressed air precision filter is used to remove water, oil, solid particles and microorganisms from compressed air, featuring high efficiency, convenient use and low operating cost. When compressed air enters the filter, droplets and particles are separated by gravity, interception, inertial collision and electrostatic adsorption, then discharged through the drainer.

  • 80°CMaximum working temperature
  • 1.5°CMinimum working temperature
  • 1.0MPaWelded Precision Filter
获取报价
下载规格书
  • Thumbnail
  • Thumbnail
  • Thumbnail
  • Thumbnail

Product Introduction

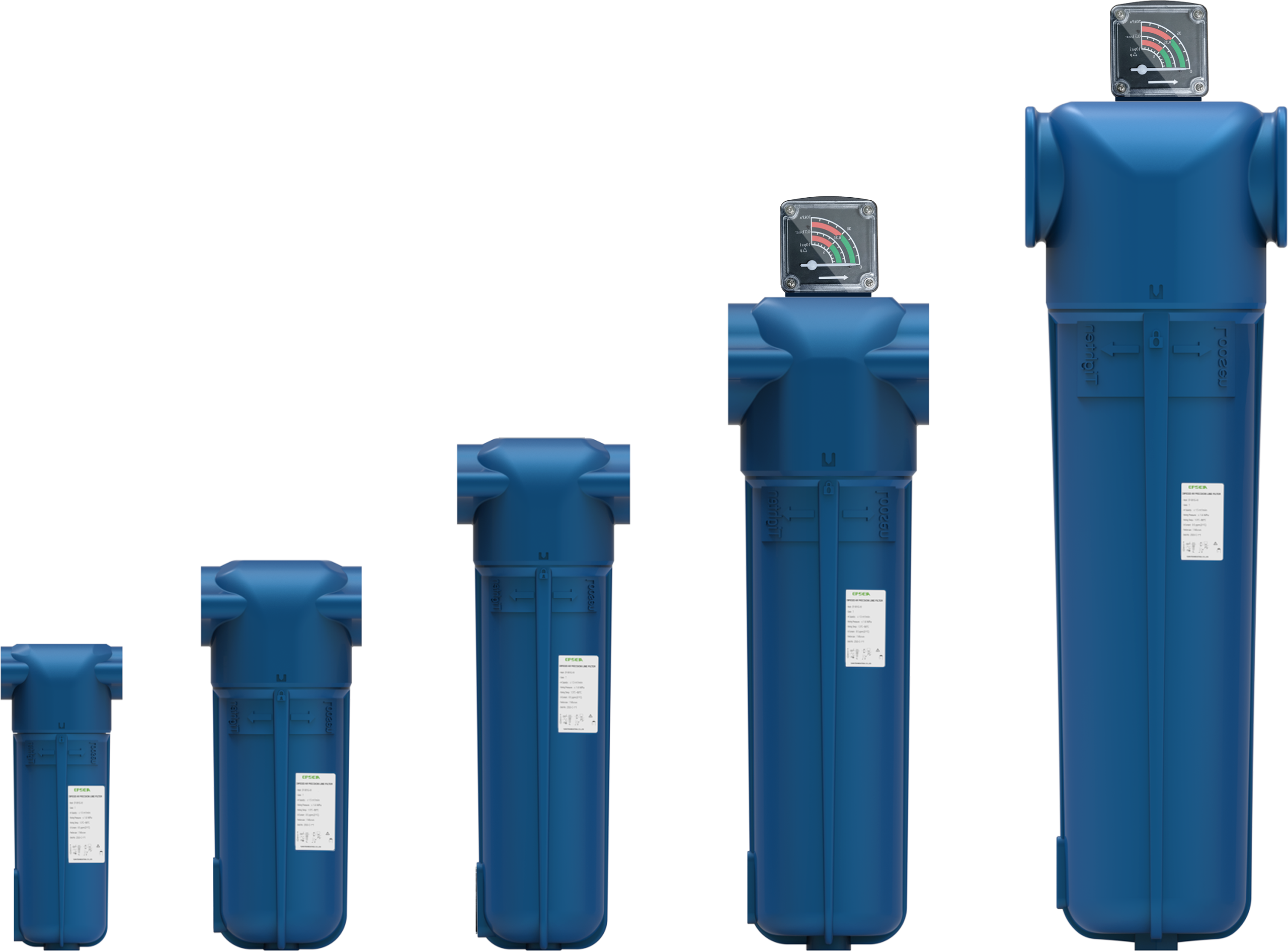

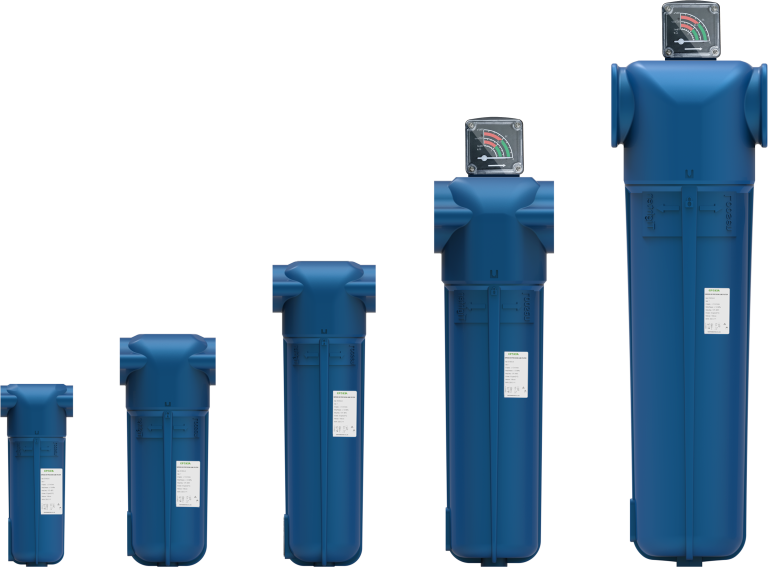

The compressed air precision filter is used to remove water, oil, solid particles and microorganisms from compressed air, featuring high efficiency, convenient use and low operating cost. When compressed air enters the filter, droplets and particles are separated by gravity, interception, inertial collision and electrostatic adsorption, then discharged through the drainer.

Filter elements are made of filter paper from German HV Company, with various grades and high filtration accuracy to meet different requirements.

Product Features

  • Efficient filtration

    Filter elements made of filter paper from German HV Company ensure high quality and efficient filtration. Various grades and functions are available, with high filtration accuracy to meet different customer requirements.

  • Optimized flow design

    Scientific calculations are adopted to control the gas flow velocities at all key components, reducing pressure drop while ensuring excellent filtration performance. The product features an exquisite appearance, a reasonable structure and fine processing, and has been granted multiple national patents.

  • Corrosion-resistant housing

    The epoxy resin powder can be sprayed to improve the corrosion resistance and service life. Practical accessories such as differential pressure gauges, liquid level sight glass and drainers can be installed.

  • Enlarged flow path

    The housing features an enlarged flow path design, which significantly minimizes system pressure loss and enhances energy efficiency.

  • Silicone-free filter element

    The filter element is crafted from multi-layer epoxy-bonded borosilicate glass fibers, and does not contain silicone resin.

  • Certified safety

    We have certification for pressure vessel manufacturing; each production process of the housing undergoes stringent control, guaranteeing absolute product safety and reliability.

Technical Specifications

下载规格书
Item Specification
Die-casting Maximum working pressure 1.6MPa
Filter grade C/T/A/AA/TR/AR
Filter type Precision Filter
Maximum working temperature 80°C

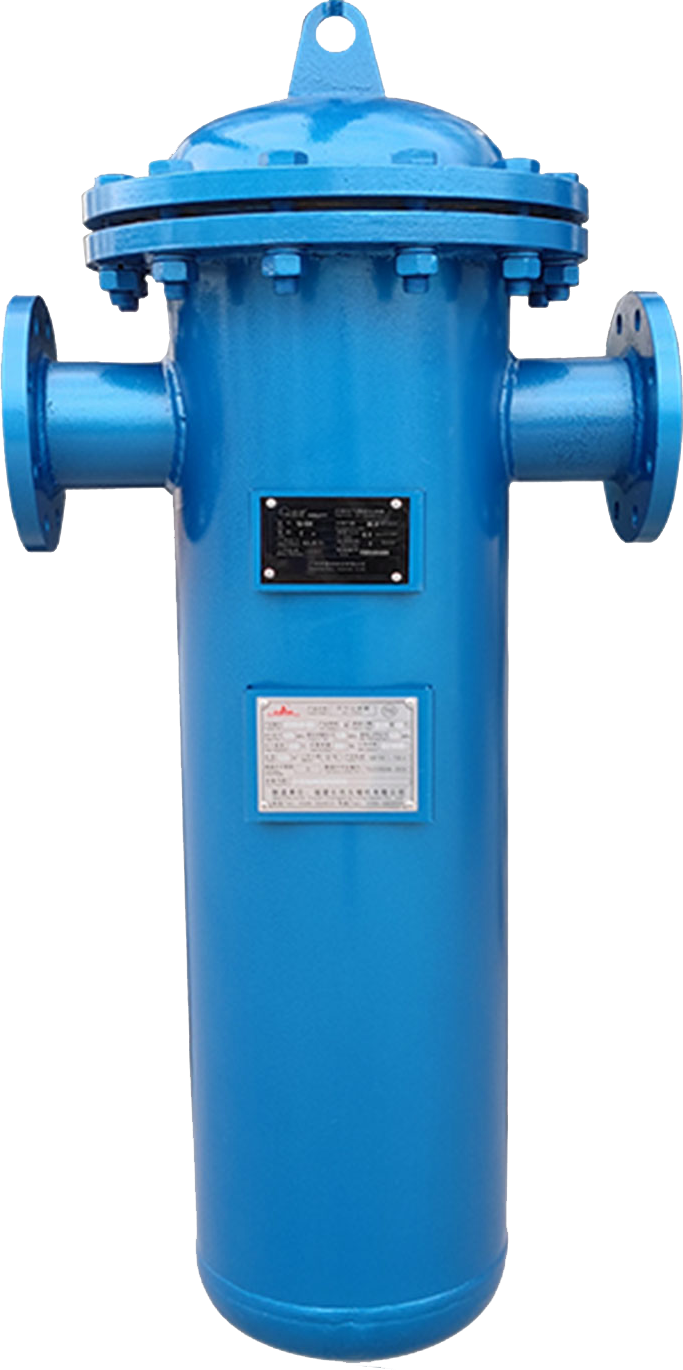

Welded Precision Filter 1.0MPa
Minimum working temperature 1.5°C
H 50°C

需要定制型号？ 联系我们的工程师。

应用 Case

  • 01

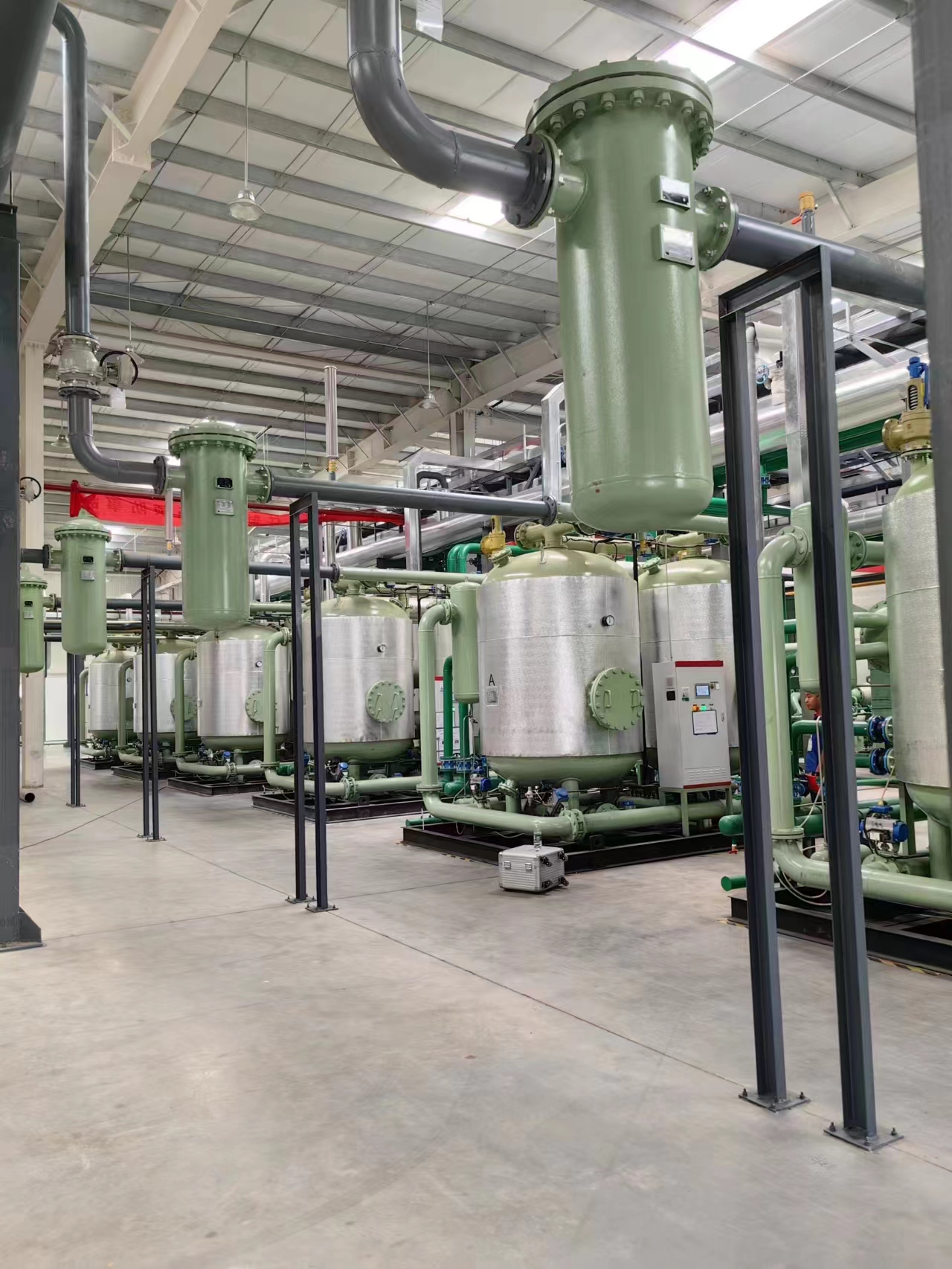

    Line Filter for New Energy Industry

    Problem

    The customer's compressed air system contained oil, moisture and solid particles, affecting production equipment operation and product quality. The new energy industry requires high compressed air cleanliness, which the existing filtration configuration could not meet.

    Solution

    We configured line filters to effectively remove oil, moisture and solid particles from the compressed air. After commissioning, compressed air quality improved, and the air supply is stable and reliable.

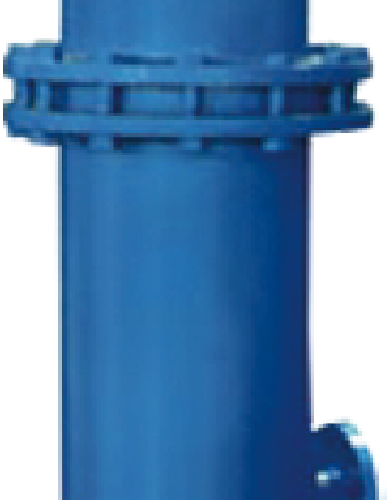

    High Efficiency Oil Remover
